STRAIGHT BOOMS
ENQUIRE ABOUT INFO AND PRICING
Sinoboom’s self-propelled Telescopic Boom Lifts offer rugged, excellent performance and reliabililty, to provide users with a safe and adaptable MEWP that meets challenging conditions and requirement needs. Self-propelled capability during aerial operations increases flexibility and productivity. Telescopic models go right up to 44m max. working height, with a large range of motion operation, high efficiency, powerful engines and large load capacity. Units are able to hold 2-3 operators and boast up to 40% gradeability, enabling ease of positioning and reduces risks of wheels slippage. These Telescopic Boom Lifts are widely used in shipbuilding and repairing, large-scale steel structures (inc. manufacturing), construction engineering, urban utilities, building maintenance, gardening, airports and harbours, curtain wall engineering, petrochemical industry applications and much more. Working at heights safely are our priority.
ELECTRIC LIFT OPTIONS
TB20EJ PLUS (TB660EJ PLUS)
GREEN
Comfortable working environment without noise pollution, meet indoor or emissions-critical site requirements.
PRECISION PERFORMANCE
- 3 joysticks with variable proportional control, operate with smooth starting and stopping and precision approach to your worksite target.
- The telematics and intelligent 7-inch screen can efficiently control the use
and behavior of the equipment.
Battery quality assurance, low failure rate and reduced maintenance costs compared with diesel power, which reduces overall operating cost.
Both the stowed and raised states have an oscillating function, allowing work to be performed on inclines and uneven ground.
Working height
22m
Platform Capacity
454kg
Gradeability
35%
DIESEL LIFT OPTIONS

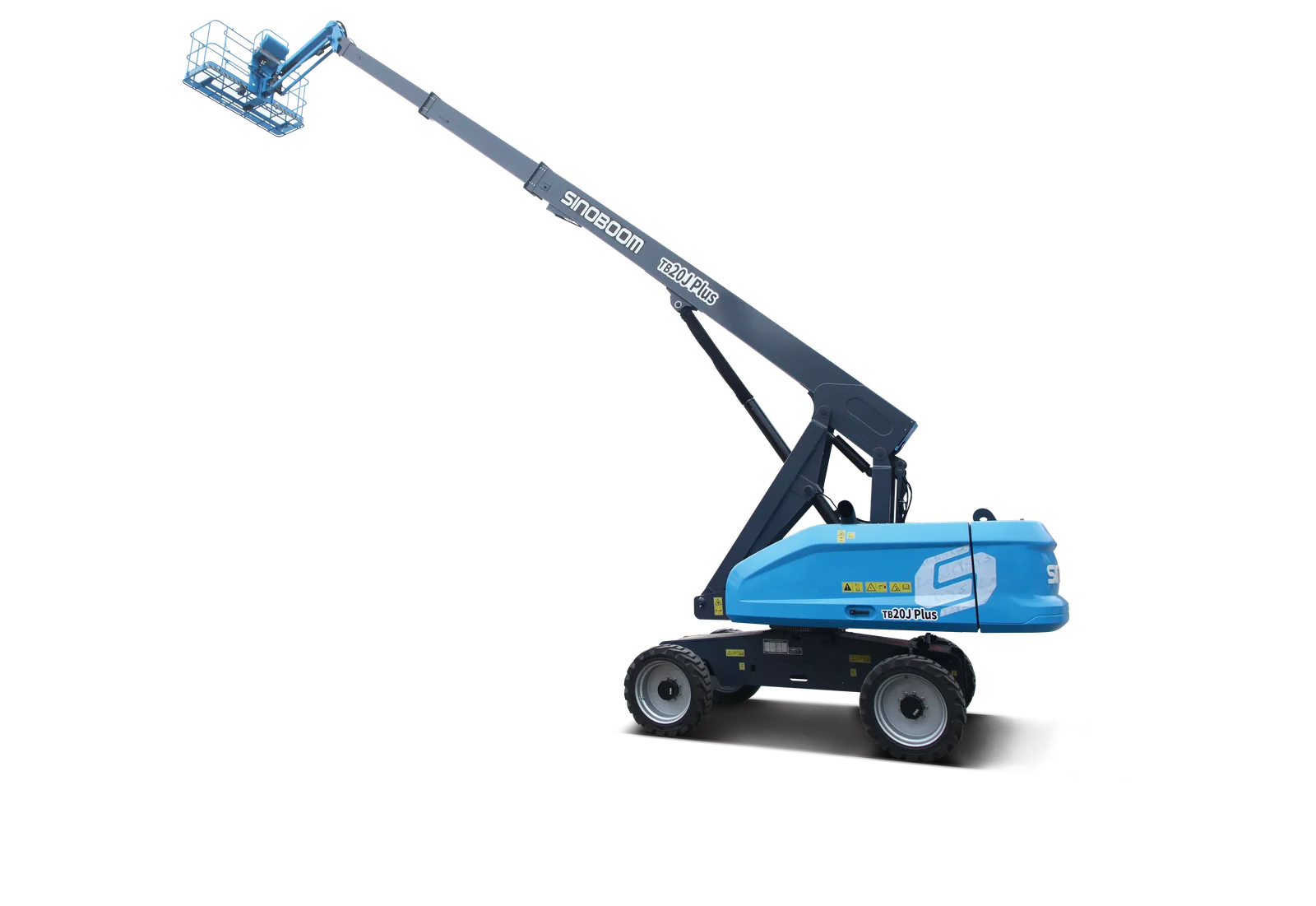

TB20J PLUS (TB660J PLUS)
HIGH CAPACITY
Plus series boom lifts holds up to 1,000lb (restricted) platform capacity allowing you to carry up to 3 occupants plus material and tools to get your job done easily.
OSCILLATING FUNCTION
Both the stowed and raised position have a oscillating function, allowing work on inclined and uneven ground.
The upper control box is equipped with 3 full-proportional handles for gradual control of boom lifting, telescoping, turntable rotation and driving speed. Operate with smooth starting and stopping and precision approach to your
worksite target.
Working height
22m
Platform Capacity
454kg
Gradeability
45%
TB26J PLUS (TB860J PLUS)
HIGH CAPACITY
Plus series boom lifts holds up to 1,000 lb (restricted)/ 661lb (unrestricted) platform capacity allowing you to carry up to 3 occupants plus material and tools to get your job done easily.
OSCILLATING FUNCTION
Both the active and inactive states have an oscillating function, allowing work to be performed on inclines and uneven ground.
Industry leading 7″ screen displays faults and status information, for easy reference, reducing service technician assistance. Workers can complete tasks under the remote guidance of qualified service technicians. Convenient for fleet managers to quickly access live machine and maintenance information.
The upper control box is equipped with 3 full-proportional handles for gradual control of boom lifting, telescoping, turntable rotation and driving speed. Operate with smooth starting and stopping and precision approach to your
worksite target.
Working height
26.3m
Platform Capacity
454kg
Gradeability
45%
TB28J PLUS (TB910J PLUS)
HIGH CAPACITY
Plus series boom lifts holds up to 1,000 lb (restricted)/ 661lb (unrestricted) platform capacity allowing you to carry up to 3 occupants plus material and tools to get your job done easily.
OSCILLATING FUNCTION
Both the active and inactive states have an oscillating function, allowing work to be performed on inclines and uneven ground.
Industry leading 7″ screen displays faults and status information, for easy reference, reducing service technician assistance. Workers can complete tasks under the remote guidance of qualified service technicians. Convenient for fleet managers to quickly access live machine and maintenance information.
The upper control box is equipped with 3 full-proportional handles for gradual control of boom lifting, telescoping, turntable rotation and driving speed. Operate with smooth starting and stopping and precision approach to your
worksite target.
Working height
29.6m
Platform Capacity
454kg
Gradeability
45%
